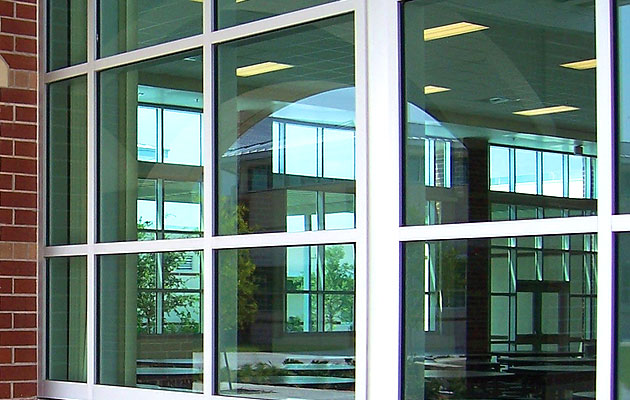

Series 401 is an economical flush glaze system available in both shear block and screw spline fabrication methods. Series 401 storefront can accommodate all standard 1 3/4" entrances as well as WV410 vents. Vertical mullions will accept steel reinforcement to enhance structural performance.
- Optional Roto-Vent ventilator
- Allows ventilation while maintaining security
- Two fabrication/erection options (screw spline, shear block)
- Method of installation fits job conditions
- Open back and shear block door frames with transom bars and rubber weather stripping
- Compatible with all 1 3/4" and 2" EFCO doors
- Provides field/shop flexibility for erector
- The same glazing gasket used for exterior and interior
- Allows optimized use of gasket
- Simplifies ordering and installation
- Accommodates up to 5/16" glazing
- Handles the most popular glass thicknesses
- 2-way corner mullions (90° & 135°)
- Design flexibility
- 3-way corner mullions (T-mullions)
- Multifaceted elevations
- 0°-15° and 15°-30° variable mullions
- Custom applications
- Various height intermediate horizontals and sills
- Ability to maintain desired sight line
- Accessory line of perimeter anchors, pocket fillers, door adaptors, etc.
- Increased product versatility
- Anodized and painted finishes available
- Unlimited options to answer economic and aesthetic concerns
/s401c009.jpg)
Door Framing
DetailsElevations/s401c010.jpg)
Door Framing
DetailsElevations/s401c019.jpg)
Door Framing
DetailsElevations/s401c015.jpg)
Door Framing
DetailsElevations
Can Receptor Framing
DetailsElevationsCan Receptor Framing
DetailsElevations
/s401c004.jpg)
Screw Spline Framing
DetailsElevations/s401c011.jpg)
Screw Spline Framing
DetailsElevations/s401c003.jpg)
Screw Spline Framing
DetailsElevations
/s401c002.jpg)
Shear Block Framing
DetailsElevations/s401c012.jpg)
Shear Block Framing
DetailsElevations/s401c001.jpg)
Shear Block Framing
DetailsElevations
