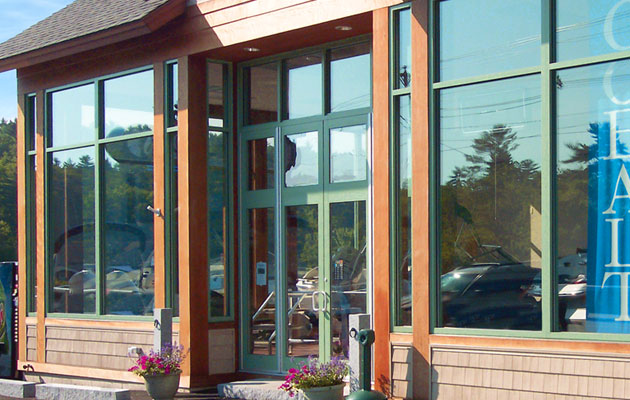

Series 433 is a thermally broken storefront framing system. Glass planes can be placed in an outside set, center set or inside set configuration, which gives the design flexibility to meet any multi-plane glazing specification. Series 433 is compatible with all EFCO entrances.
- Three glass planes
- Create shadow box effect, match vision of architect
- Thermally improved frames
- Enhanced thermal performance
- All joints and horizontal mullions are square cut
- Allows quick fabrication in the field
- Facilitates shop fabrication of "ladders" that can be transported as a unit to job sites for quick installation
- Door frames will accommodate glass in three planes
- Accommodates multifaceted elevations
- Glass plane effect can continue at door frames
- 90° and 135° inside and outside corner mullions
- Accommodates mulifaceted elevations
- Utilizes a common mullion with standard verticals attached to reduce number of dies
- All joint fasteners are #12 screws
- Simplifies fabrication
- Strengthens system to allow transportation of ladders without damage to joinery system
- Steel is available for mullions as stock steel bars or custom fabricated steel shapes
- Allows system performance enhancements
- Eliminates the cost of customer steel fabrication
- Accommodates up to 1 1/16" glazing
- Energy savings options
- Inside or outside glazing in all glass planes
- Allows flexibility of construction methods
- Uniform glazing gasket is used for exterior and interior
- Allows optimized use of gasket
- Simplifies ordering and installation
- Anodized or painted finishes available
- Unlimited options to answer economic and aesthetic concerns
- Stock length or fabricated
- Provides customers with an option
/s433c013.jpg)
Door Framing
DetailsElevations/s433c015.jpg)
Door Framing
DetailsElevations/s433c014.jpg)
Door Framing
DetailsElevations/s433c023.jpg)
Door Framing
DetailsElevations/s433c017.jpg)
Door Framing
DetailsElevations/s433c016.jpg)
Door Framing
DetailsElevations/s433c018.jpg)
Door Framing
DetailsElevations/s433c019.jpg)
Door Framing
DetailsElevations/s433c020.jpg)
Door Framing
DetailsElevations/s433c021.jpg)
Door Framing
DetailsElevations/s433c025.jpg)
Door Framing
DetailsElevations/s433c024.jpg)
Door Framing
DetailsElevations/s433c022.jpg)
Door Framing
DetailsElevations
/s433c010.jpg)
Screw Spline Framing
DetailsElevations/s433c007.jpg)
Screw Spline Framing
DetailsElevations/s433c012.jpg)
Screw Spline Framing
DetailsElevations/s433c009.jpg)
Screw Spline Framing
DetailsElevations/s433c008.jpg)
Screw Spline Framing
DetailsElevations/s433c011.jpg)
Screw Spline Framing
DetailsElevations
/s433c003.jpg)
Shear Block Framing
DetailsElevations/s433c001.jpg)
Shear Block Framing
DetailsElevations/s433c005.jpg)
Shear Block Framing
DetailsElevations/s433c004.jpg)
Shear Block Framing
DetailsElevations/s433c002.jpg)
Shear Block Framing
DetailsElevations/s433c006.jpg)
Shear Block Framing
DetailsElevations
